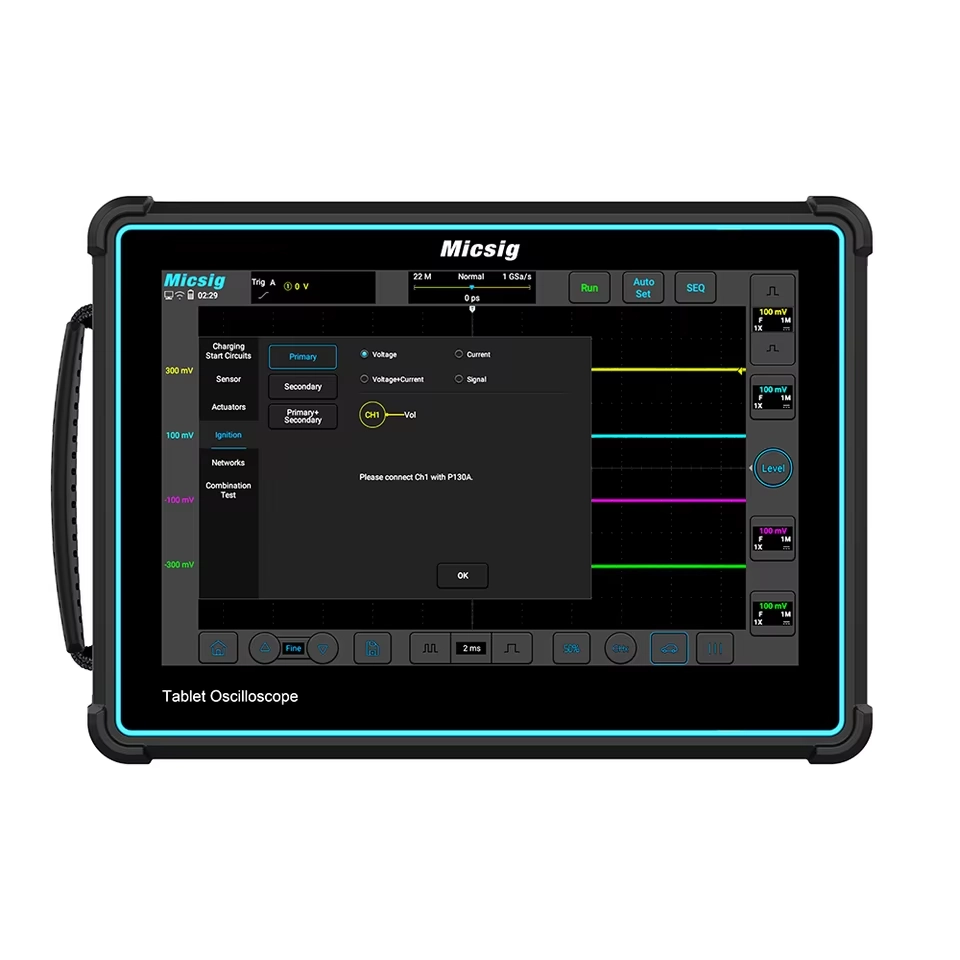

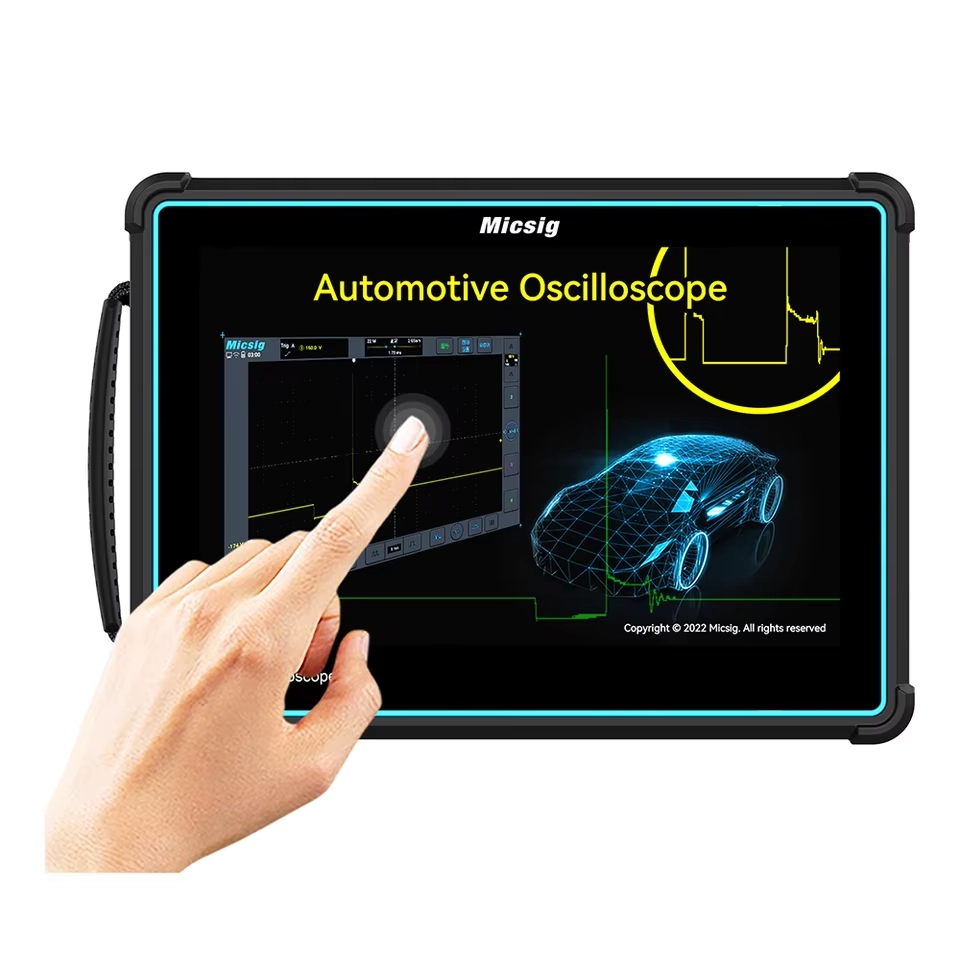

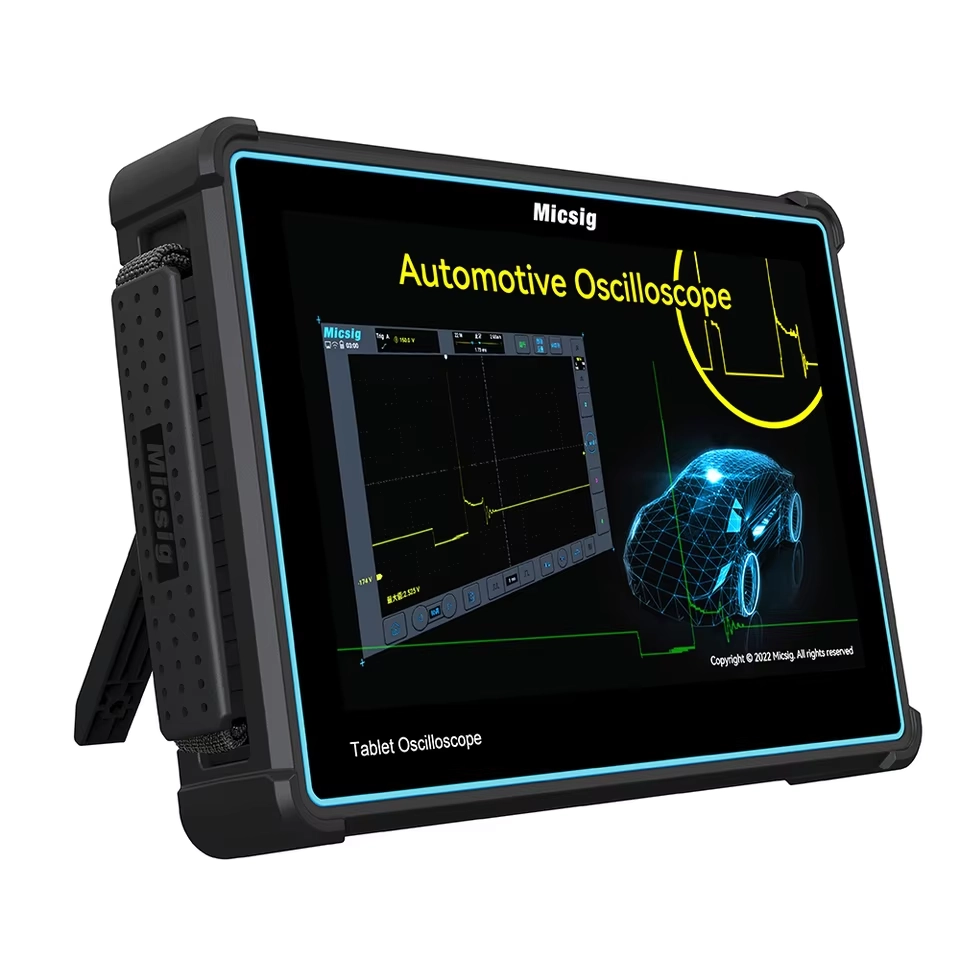

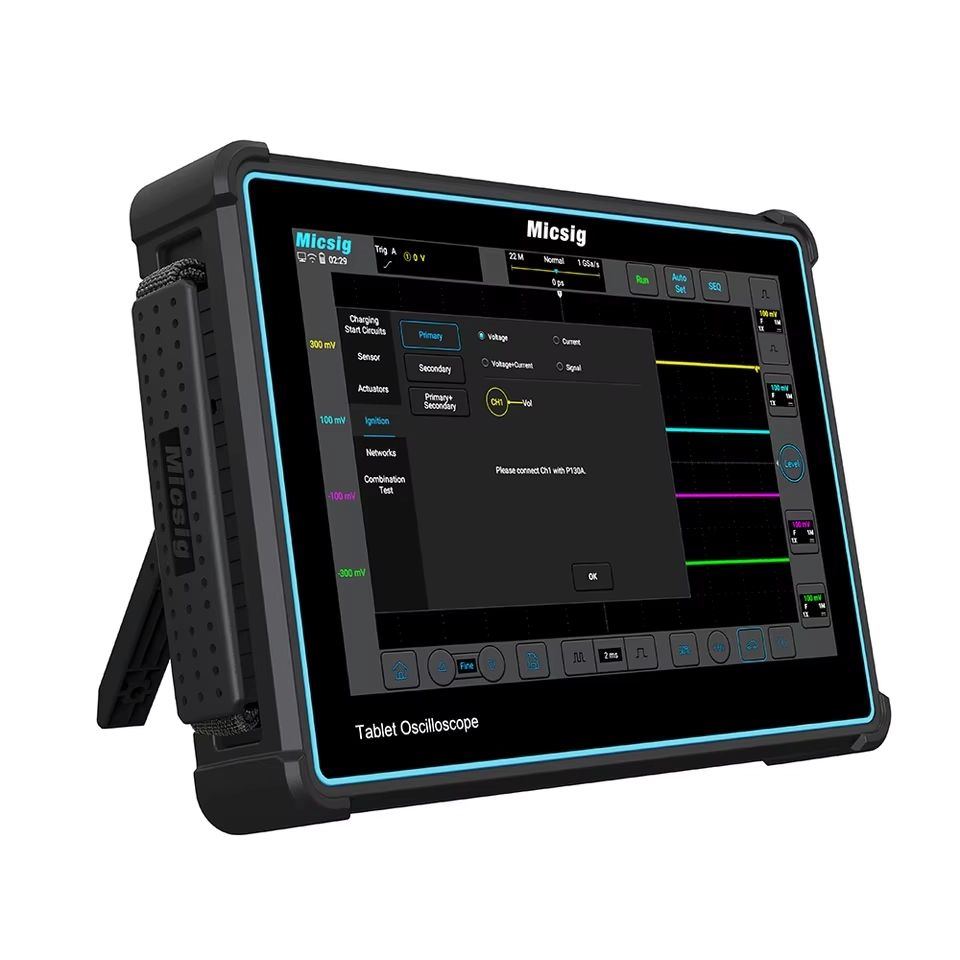

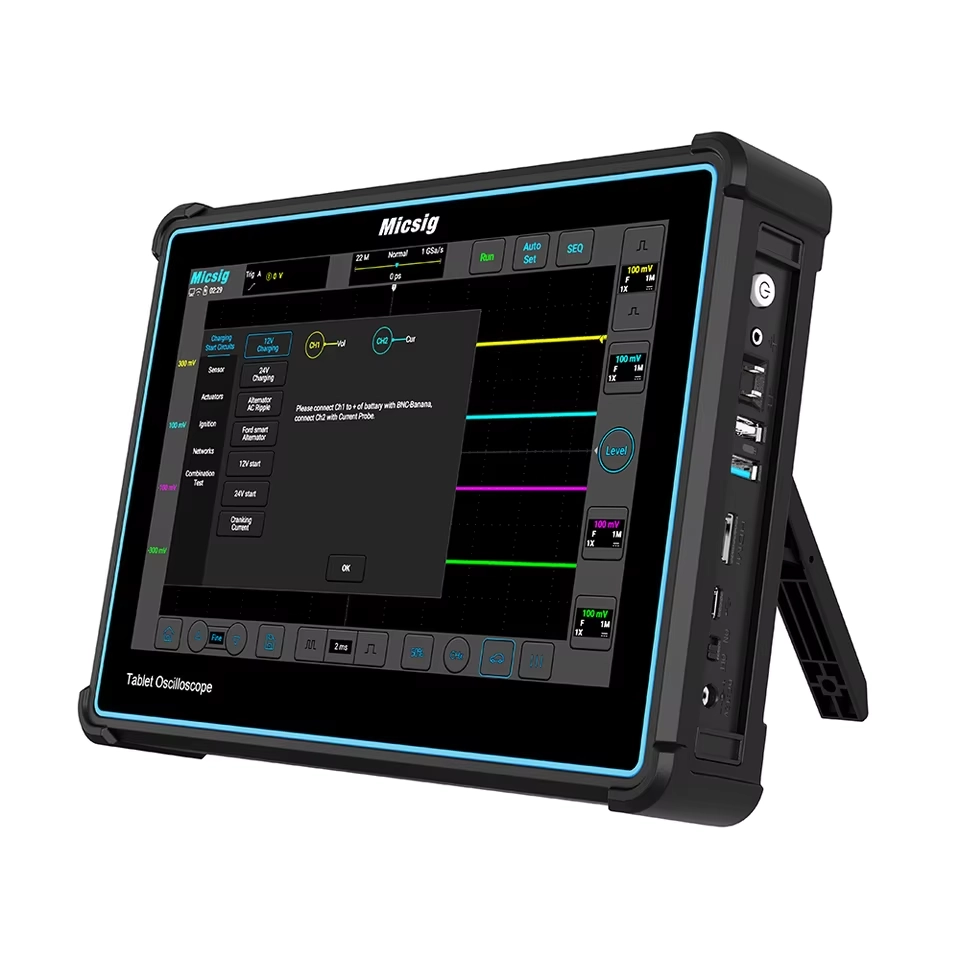

Micsig Handheld Digital Automotive Oscilloscope ATO 3004 2002 2004 Portable 2/4 Channel 200MHz/300MHz Touch Screen Tablet 1
- 1. Real-time sampling rate : 2GSa/s、1GSa/s
- 2.Input sensitivity range : 300,000 wfms/s、78,000 wfms/s
- 3.Vertical Resolution ： 8bit
- 4.Support Test ： Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, Flexray, K line), Combination Tests
- 5.Bus decoding ： RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C
- 6.Interfaces ： Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out
- 7. Display ： 10.1 Inch LCD capacitive touch display，1280*800 resolution，11*10 grids
- 8.Battery ： 7.4V ,7500mAh Li-Ion battery
- 9.Dimension / Net Weight ： 265*192*50mm / 1.9kg（with battery）
Micsig Handheld Digital Automotive Oscilloscope ATO 3004 2002 2004 Portable 2/4 Channel 200MHz/300MHz Touch Screen Tablet 1
Specifications
| Model | ATO3004 | ATO3002 (N/A) | ATO2004 | ATO2002 | ATO1004 |
|---|---|---|---|---|---|
| Bandwidth | 300MHz | 300MHz | 200MHz | 200MHz | 100MHz |
| Rise Time | ≤1.16ns | ≤1.16ns | ≤1.75ns | ≤1.75ns | ≤3.5ns |
| Analog channels | 4 | 2 | 4 | 2 | 4 |
| Real-time sampling rate | 2GSa/s | 2GSa/s | 2GSa/s | 1GSa/s | 1GSa/s |
| Memory Depth | 220Mpts | 220Mpts | 220Mpts | 110Mpts | 110Mpts |
| Max. waveform capture rate | 300,000 wfms/s | 300,000 wfms/s | 300,000 wfms/s | 78,000 wfms/s | 78,000 wfms/s |
| Input sensitivity range | 1mV/div ~ 10V/div (1MΩ)；1mV/div ~ 1V/div (50Ω) | 1mV/div ~ 10V/div | |||
| Bandwith Filter | 20MHz, Low Pass (to 30Hz) | 20MHz, Low Pass (to 30KHz) | |||
| Segmented Storage | Support，capture max 10,000 waveform events | Not Support | |||
| Timebase range | 1ns/div ~ 1ks/div | 2ns/div ~ 1ks/div | |||
| Vertical Resolution | 8bit | ||||
| Support Test | Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, Flexray, K line), Combination Tests | ||||
| Bus decoding | RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C | ||||
| Interfaces | Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out | ||||
| Storage | 32GB | ||||
| Display | 10.1 Inch LCD capacitive touch display，1280*800 resolution，11*10 grids | ||||
| Battery | 7.4V ,7500mAh Li-Ion battery | ||||
| Dimension / Net Weight | 265*192*50mm / 1.9kg（with battery） | ||||
