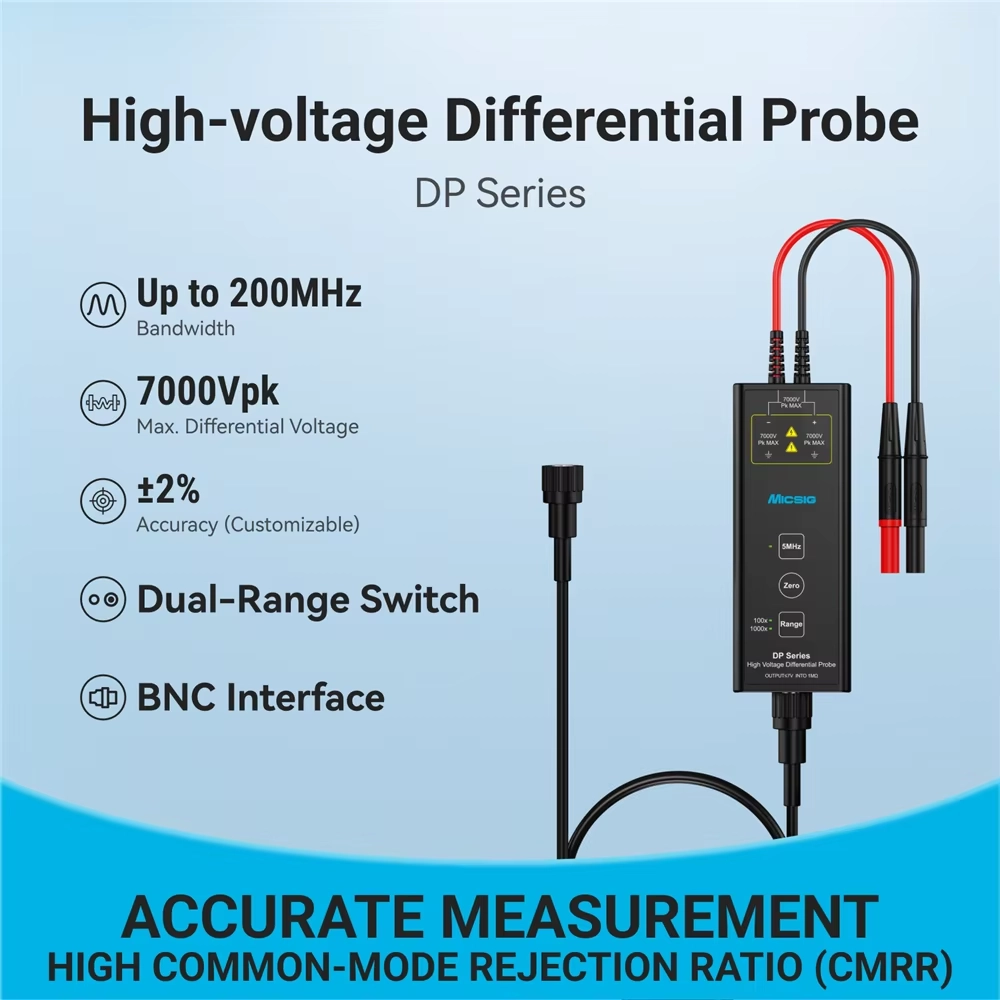

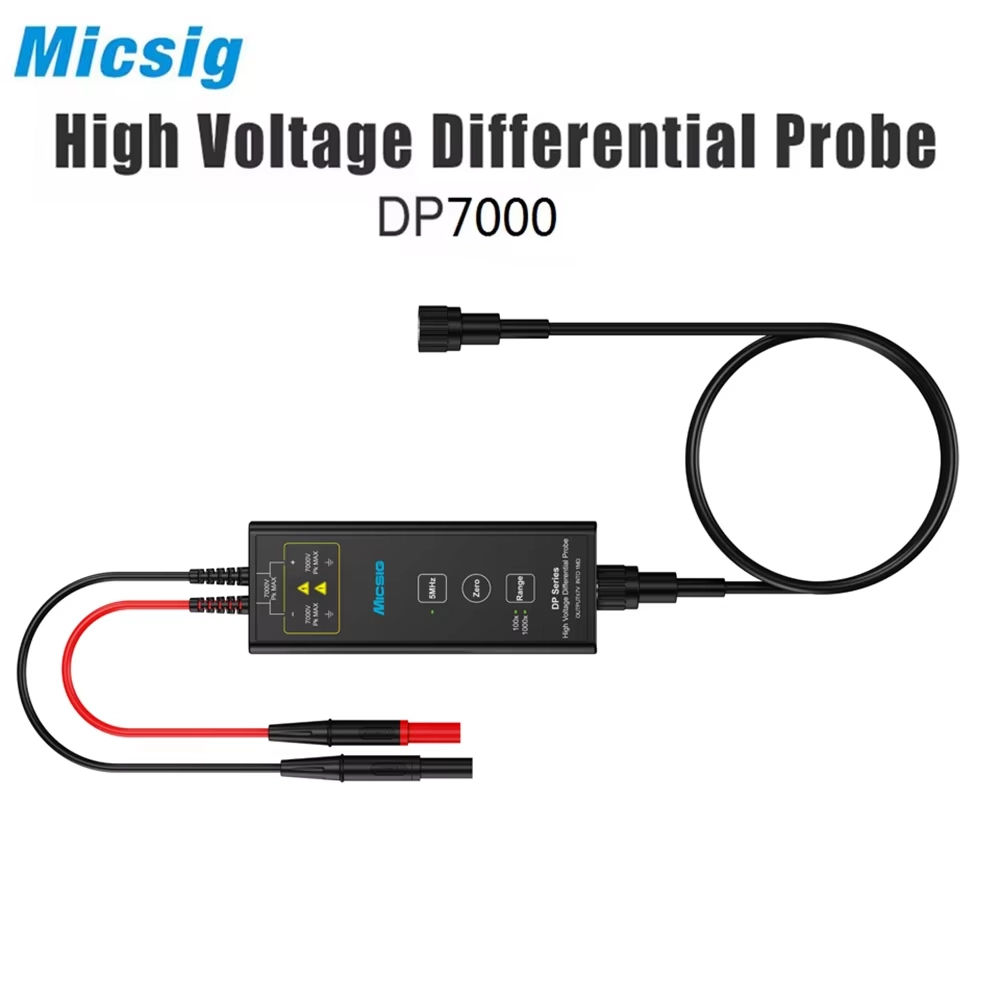

Micsig Oscilloscope High Voltage Differential Probe DP Series-DP700/DP1500/DP3000/DP7000 with 100 MS/s Sample Rate
- 1. Accuracy (Typical) ： ±2% (Customizable 1% accuracy)
- 2. Bandwidth ： 100MHz
- 3. CMRR ： DC：>80dB 100kHz: >60dB 10MHz: >30dB 100MHz: >26dB
Micsig Oscilloscope High Voltage Differential Probe DP Series -- DP700/DP1500/DP3000/DP7000 with 100 MS/s Sample Rate
Specifications
| Model |
Accuracy (Typical) |
Bandwidth | Differential Voltage (DC+AC PK) Max. | CMRR | Input impedance |
|---|---|---|---|---|---|
| DP700 | ±2% (Customizable 1% accuracy) | 100MHz | 70V（20X） 700V（200X） |
DC：>80dB 100kHz: >60dB 10MHz: >30dB 100MHz: >26dB |
6MΩ/1.67pF (differential) 3MΩ/3.3pF (each input to ground) |
| DP1500 | 150V（50X） 1500V（500X） |
13.2MΩ/1.67pF (differential) 6.6MΩ/3.3pF (each input to ground) |
|||
| DP3000 | 300V（100X） 3000V（1000X） |
30MΩ/0.78pF (differential) 15MΩ/1.57pF (each input to ground) |
|||
| DP7000 | 700V（100X） 7000V（1000X） |
120MΩ/0.78pF (differential) 60MΩ/1.57pF (each input to ground) |
|||
| DP702 | ±2% (Customizable 1% accuracy) | 200MHz | 70V（20X） 700V（200X） |
DC：>80dB 100kHz: >60dB 10MHz: >30dB 100MHz: >26dB |
6MΩ/1.67pF (differential) 3MΩ/3.3pF (each input to ground) |
| DP1502 | 150V（50X） 1500V（500X） |
13.2MΩ/1.67pF (differential) 6.6MΩ/3.3pF (each input to ground) |
|||
| DP3002 | 300V（100X） 3000V（1000X） |
30MΩ/0.35pF (differential) 15MΩ/0.7pF (each input to ground) |
|||
| DP7002 | 700V（100X） 7000V（1000X） |
120MΩ/0.35pF (differential) 60MΩ/0.7pF(each input to ground) |
|||
| DP703 | ±2% (Customizable 1% accuracy) | 300MHz | 70V（20X） 700V（200X） |
DC：>80dB 100kHz: >60dB 10MHz: >30dB 100MHz: >26dB |
6MΩ/1.67pF (differential) 3MΩ/3.3pF (each input to ground) |
| DP1503 | 150V（50X） 1500V（500X） |
13.2MΩ/0.78pF (differential) 6.6MΩ/1.57pF (each input to ground) |
|||
| DP3003 | 300V（100X） 3000V（1000X） |
30MΩ/0.35pF (differential) 15MΩ/0.7pF (each input to ground) |
|||
| DP7003 | 700V（200X） 7000V（2000X） |
120MΩ/0.35pF (differential) 60MΩ/0.7pF(each input to ground) |
