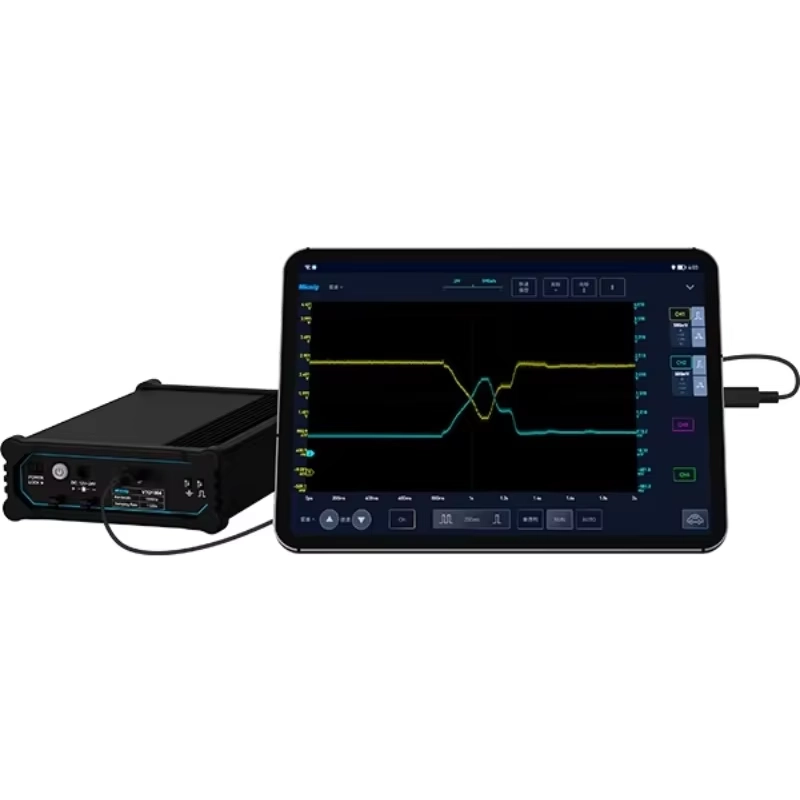

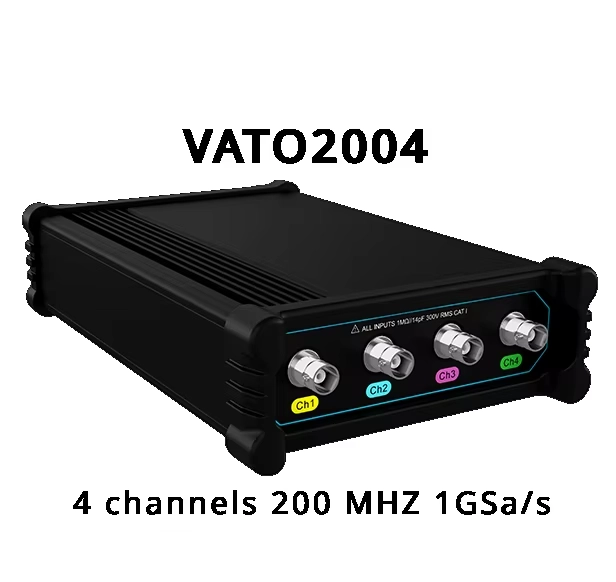

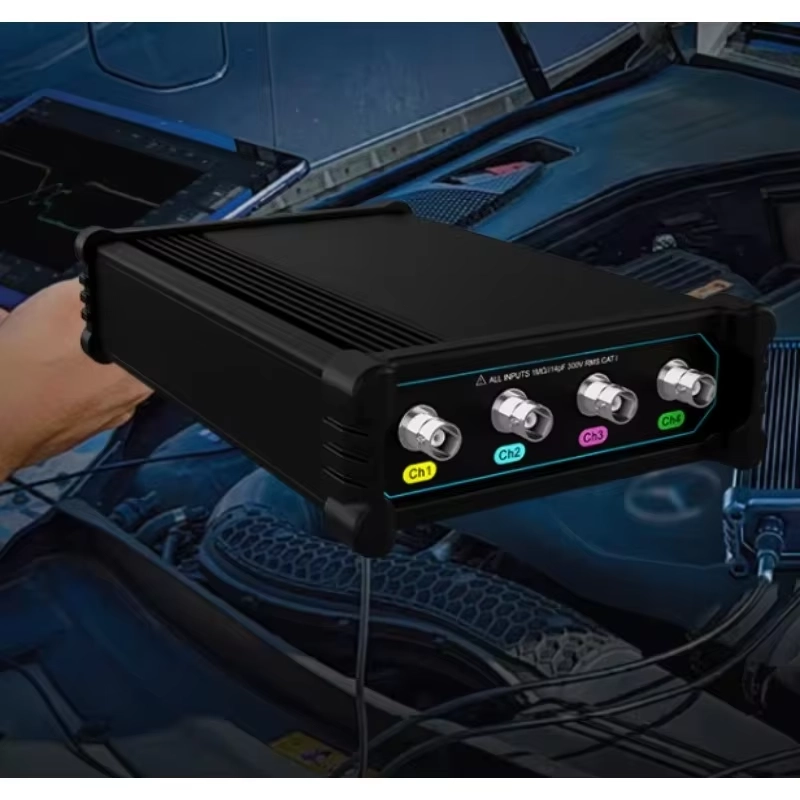

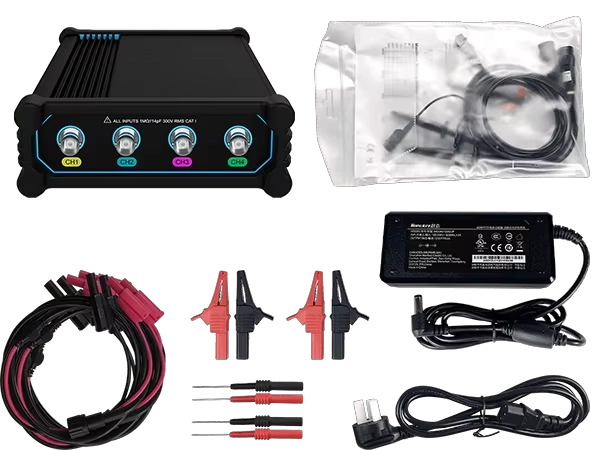

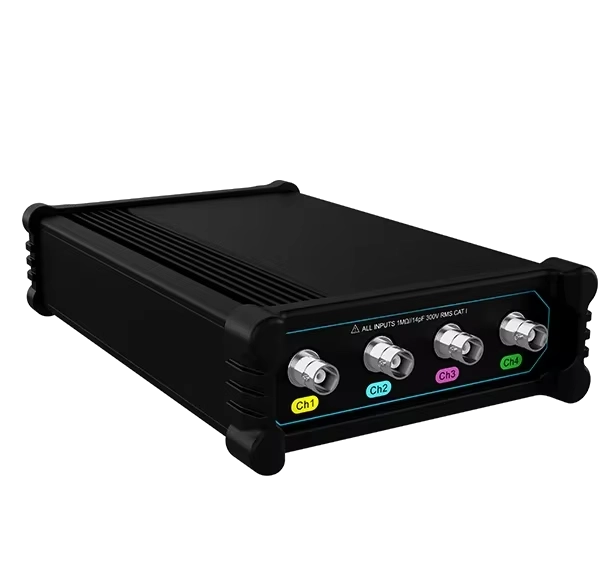

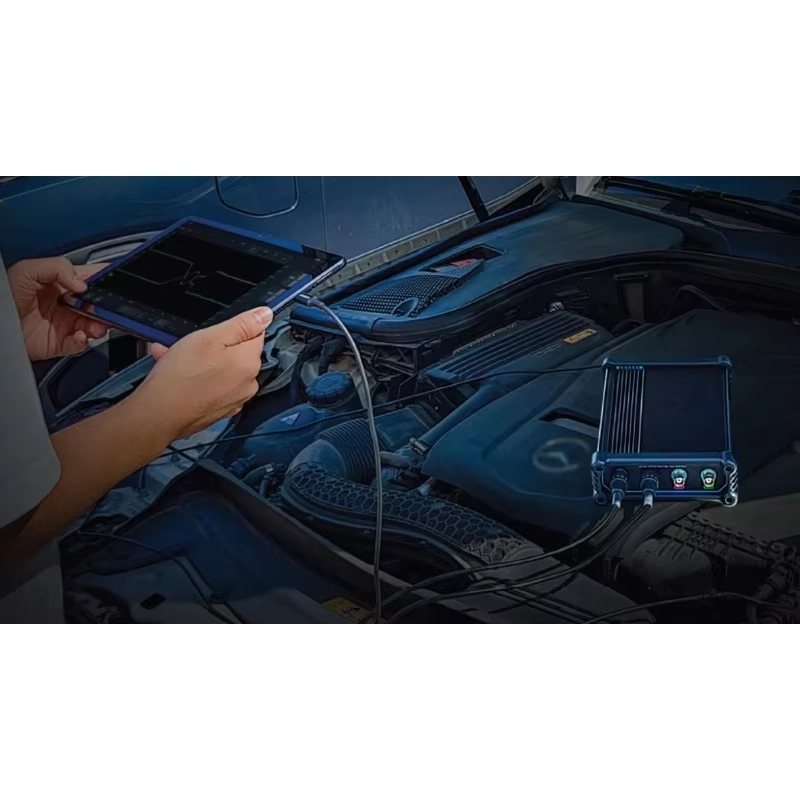

Micsig VATO2004 4-Channel 200MHz USB Oscilloscope 1GSa/s Sampling Memory 50Mpts Automotive Diagnostic Tool
- 1. Bandwidth ： 200MHz
- 2. 200MHz ： 4
- 3. Real-time sampling rate ：1GSa/s
- 4. Vertical Resolution ： 8bit
- 5. Input Impedance ： 1MΩ±1% || 14pF
- 6. Power supply ： DC 12V
- 7. Support Test ： Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, LIN, Flexray, K line),
- Combination Tests
- 8. Battery ( Optional ) ： 7.4V、7500mAh Lithium-ion battery
- 9. DC Gain Accuracy ： ≤ 2%
Micsig VATO2004 4-Channel 200MHz USB Oscilloscope 1GSa/s Sampling Memory 50Mpts Automotive Diagnostic Tool
Specifications
| Model | VATO2004 | ||
|---|---|---|---|
| Bandwidth | 200MHz | ||
| Analog channels | 4 | ||
| Rise Time | ≤1.75ns | ||
| Real-time sampling rate | 1GSa/s | ||
| Memory Depth | 50Mpts | ||
| Vertical Resolution | 8bit | ||
| DC Gain Accuracy | ≤ 2% | ||
| Input Impedance | 1MΩ±1% || 14pF | ||
| Power supply | DC 12V | ||
| Support Test |
Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, LIN, Flexray, K line), Combination Tests |
||
| Battery ( Optional ) | 7.4V、7500mAh Lithium-ion battery | ||
| Dimensions | 140*215*52mm | ||
| Net Weight | 640g | ||
