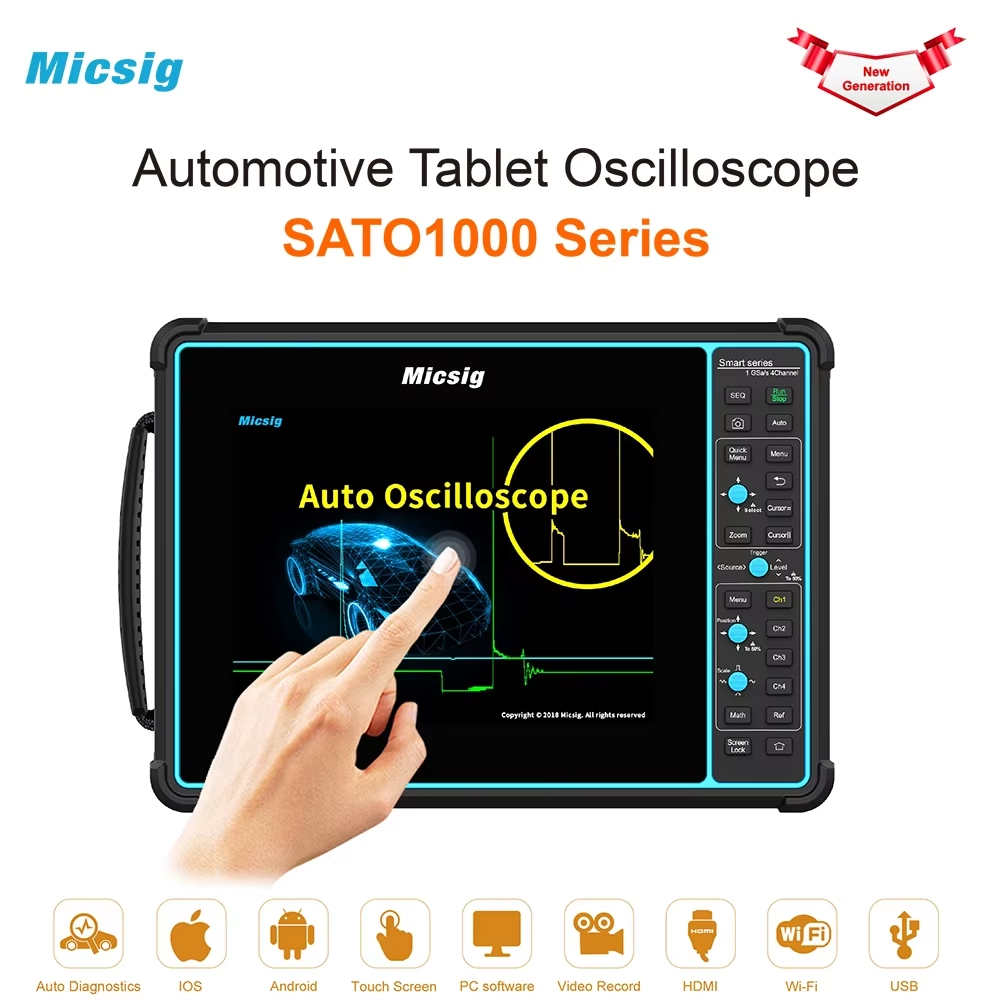

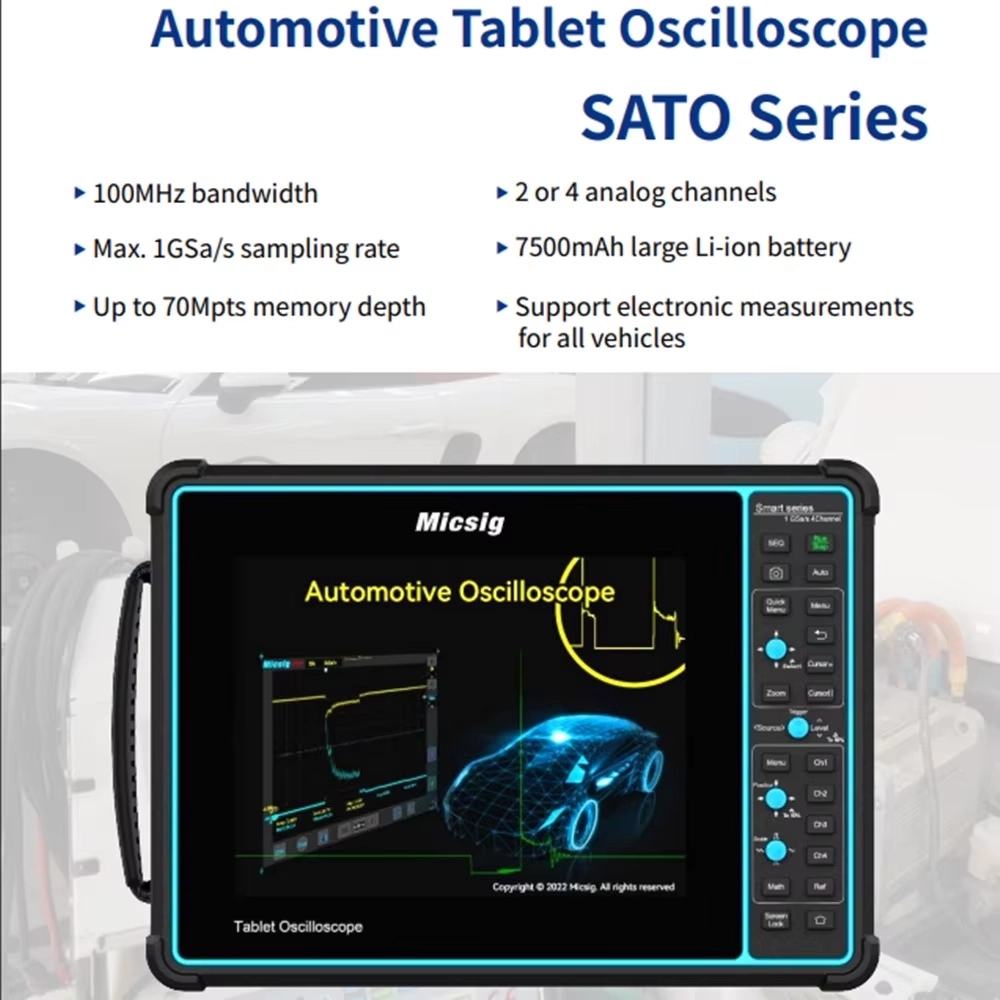

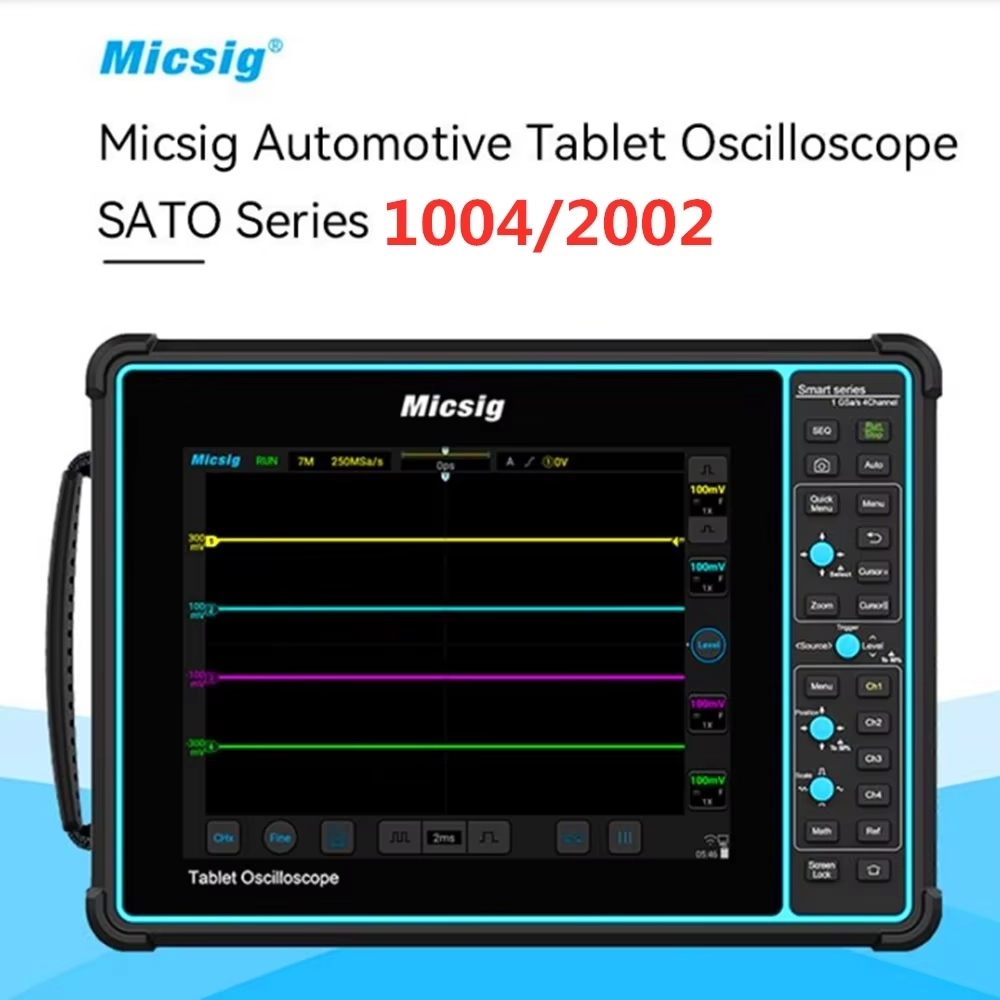

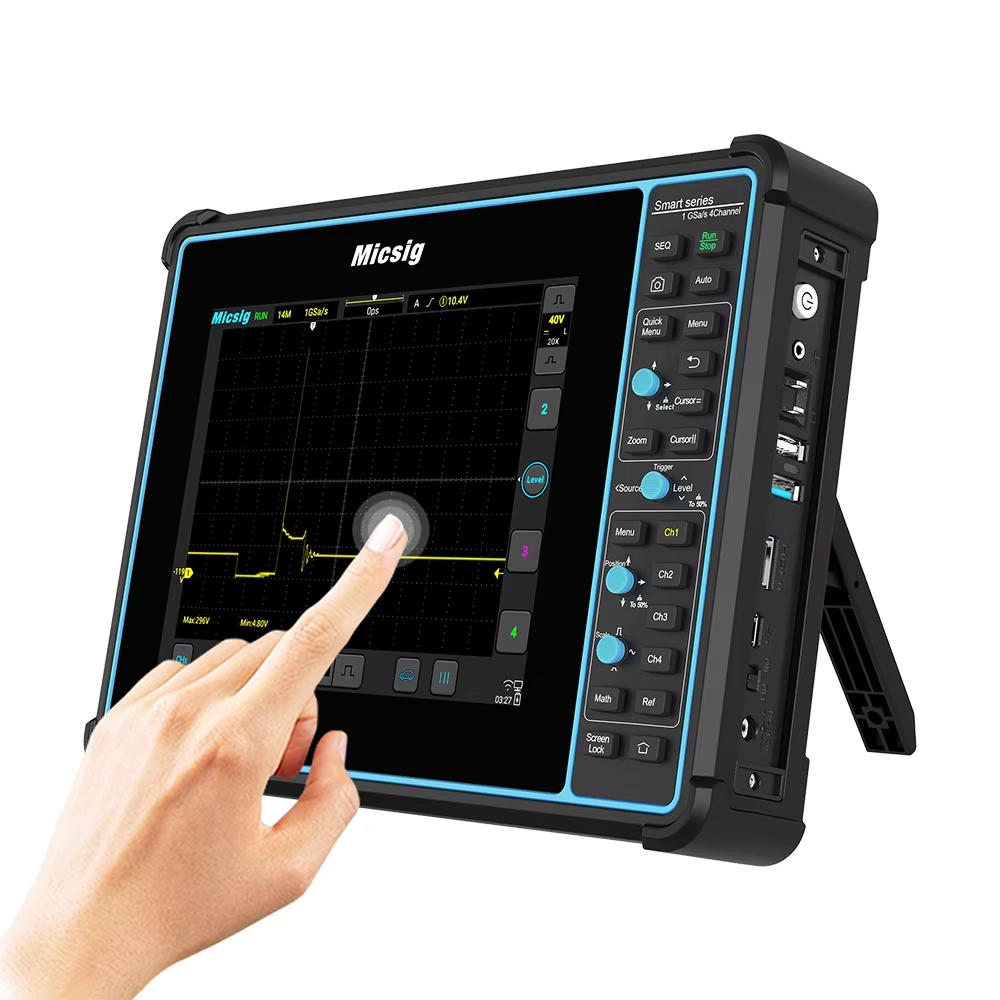

Micsig SATO1004/SATO2002 Digital Automotive Oscilloscope Handheld 2/4CH 100/200MHz 1GSa/S Sample Rate Touch Button Tablet AC USB
- 1. Max. waveform capture rate ： 130,000 wfms/s
- 2. Vertical Resolution ： 8bit

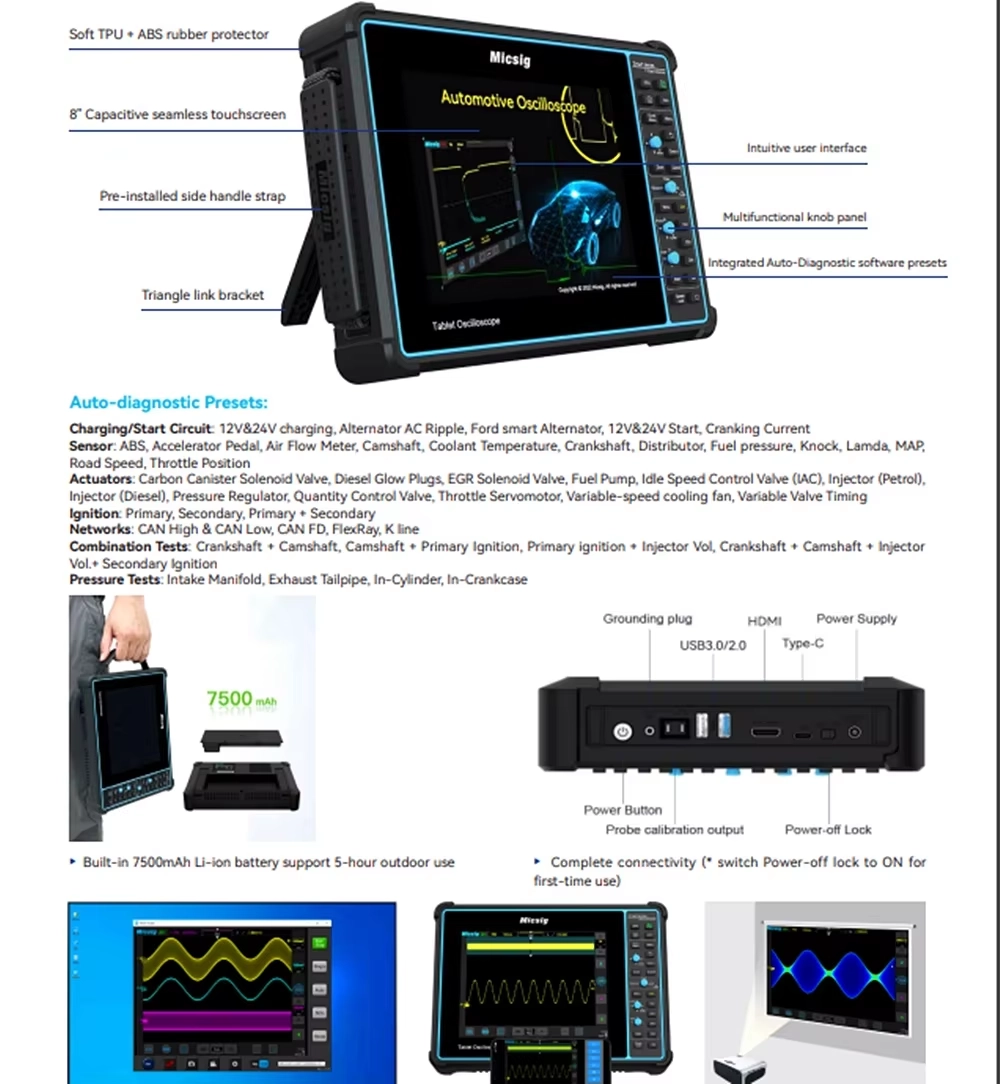

- 3. Support Test ： Charging/Start Circuits, Sensors, Actuators, Ignition,
- Networks (CAN L/H, CAN FD, LIN, Flexray, K line),Combination Tests
- 4. Bandwidth Filter ： Full bandwidth, Low pass
- 5. Interfaces ： Wi-Fi、USB 3.0/2.0 Host、USB Type-C、HDMI、Trigger out
- 6. Display ： 8" TFT LCD capacitive touch screen, 800*600 pixels, 14*10 grids
- 7. Dimension / Net Weight ： 265*192*50mm/1.9kg (with battery)
Micsig SATO1004/SATO2002 Digital Automotive Oscilloscope Handheld 2/4CH 100/200MHz 1GSa/S Sample Rate Touch Button Tablet AC USB
Specifications
| Model | SATO1004 | SATO2002 |
|---|---|---|
| Bandwidth | 100MHz | 200MHz |
| Analog channels | 4 | 2 |
| Rise Time | ≤3.5ns | ≤1.75ns |
| Real-time sampling rate | 1GSa/s | 1GSa/s |
| Memory depth | 70Mpts | 70Mpts |
| Max. waveform capture rate | 130,000 wfms/s | |
| Vertical Resolution | 8bit | |
| Support Test | Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, Flexray, K line),Combination Tests |
|
| Bandwidth Filter | Full bandwidth, Low pass | |
| Interfaces | Wi-Fi、USB 3.0/2.0 Host、USB Type-C、HDMI、Trigger out | |
| Display | 8" TFT LCD capacitive touch screen, 800*600 pixels, 14*10 grids | |
| Dimension / Net Weight | 265*192*50mm/1.9kg (with battery) | |
