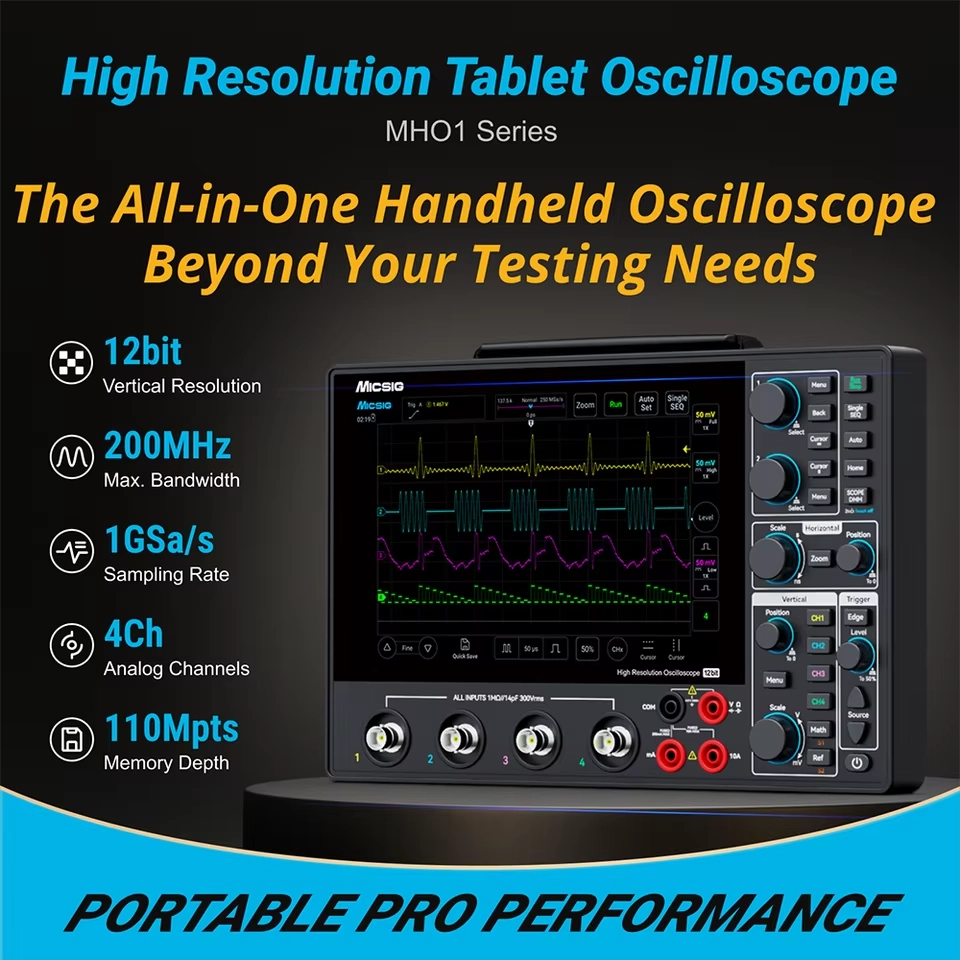

Micsig MHO14-100/MHO14-200 Digital Oscilloscope 100MHz/200MHz Bandwidth 1GSa/s Sampling Rate 12Bit
- 1.Memory Depth : 110Mpts
- 2.Analog channels : 4
- 3.Dimension ：265*174*31mm(Width x Height x Thickness)
- 4.Real-time sampling rate ：1GSa/s
- 5.MHO14 Series : Micsig MHO14-100/MHO14-200

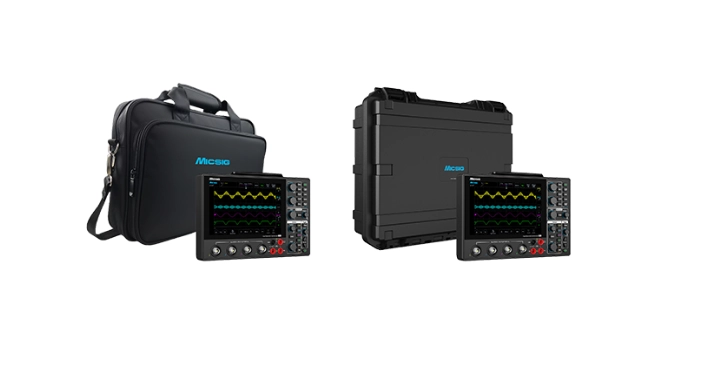

- 6.6.Accessory information:
- (1).Passive probe * 4, power cord * 1, power adapter * 1, user quick guide * 1
- (2).Passive probe * 4, power cord * 1, power adapter * 1, user quick guide * 1,dedicated carrying case * 1（Single package of goods: 43 * 35 * 16cm battery built-in in oscilloscope, other accessories in accessory box）
- (3).Passive probe * 4, power cord * 1, power adapter * 1, user quick guide * 1,dedicated handbag * 1
- 7.Vertical Resolution : 12bit
Micsig Digital Oscilloscope MHO14-100/MHO14-200 4Channel 100MHz/200MHz Bandwidt 1GSa/s Sampling Rate 12Bit Vertical Resolution

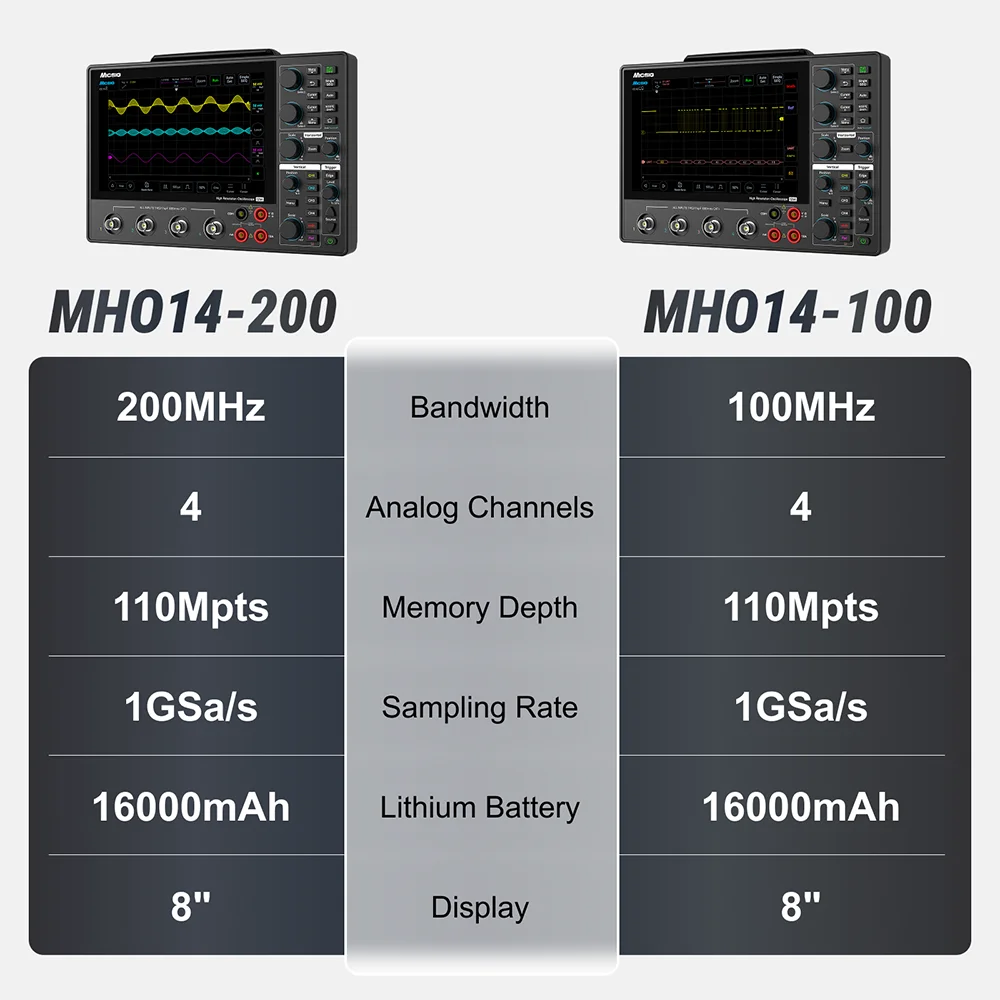

Specification
| Model | MHO14-100 | MHO14-200 | MHO14-100N | MHO14-200N |
|---|---|---|---|---|
| Bandwidth | 100MHz | 200MHz | 100MHz | 200MHz |
| Analog channels | 4 | 4 | 4 | 4 |
| Real-time sampling rate | 1GSa/s | 1GSa/s | 1GSa/s | 1GSa/s |
| Rise Time | ≤3.5ns | ≤1.75ns | ≤3.5ns | ≤1.75ns |
| Memory Depth | 110Mpts | 110Mpts | 110Mpts | 110Mpts |
| Vertical Resolution | 12bit | |||
| Max. waveform capture rate | 50,000wfms/s | |||
| Interfaces | USB 3.0 Host、USB Type-C、LAN、HDMI | |||

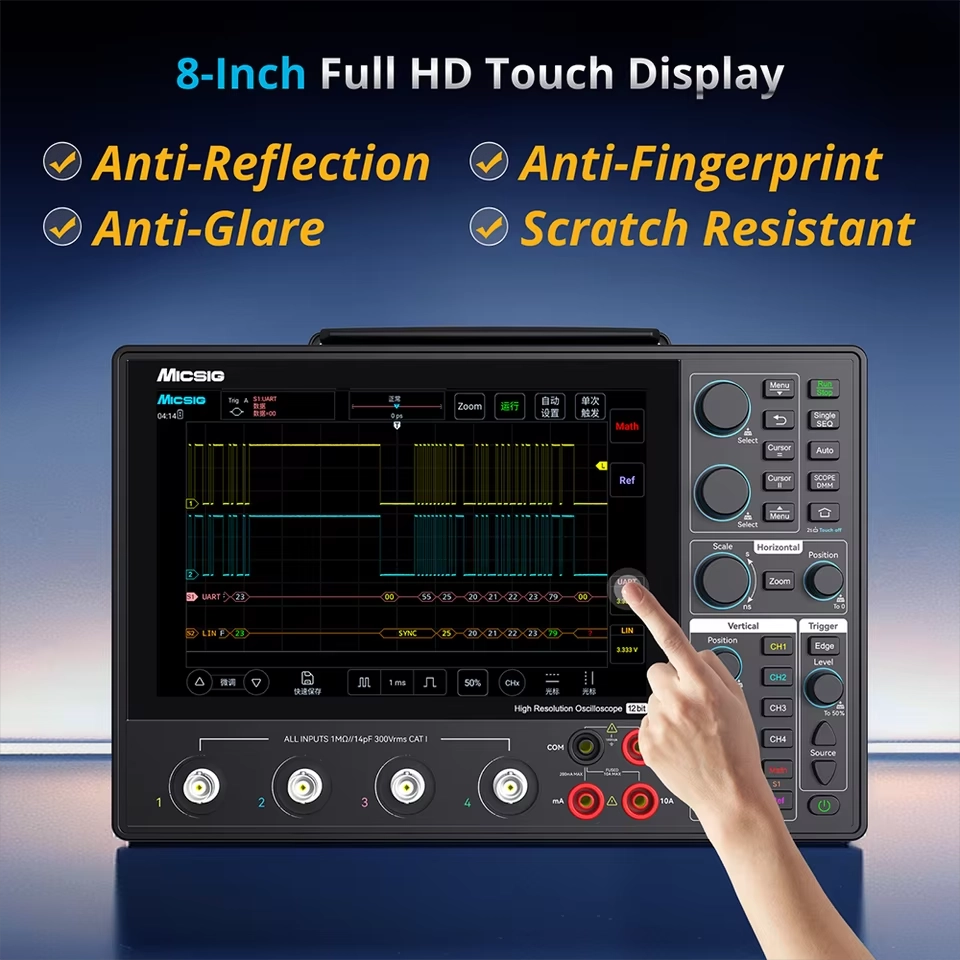

| Display | 8" TFT LCD capacitive touch screen, 1280*800 pixels | |||

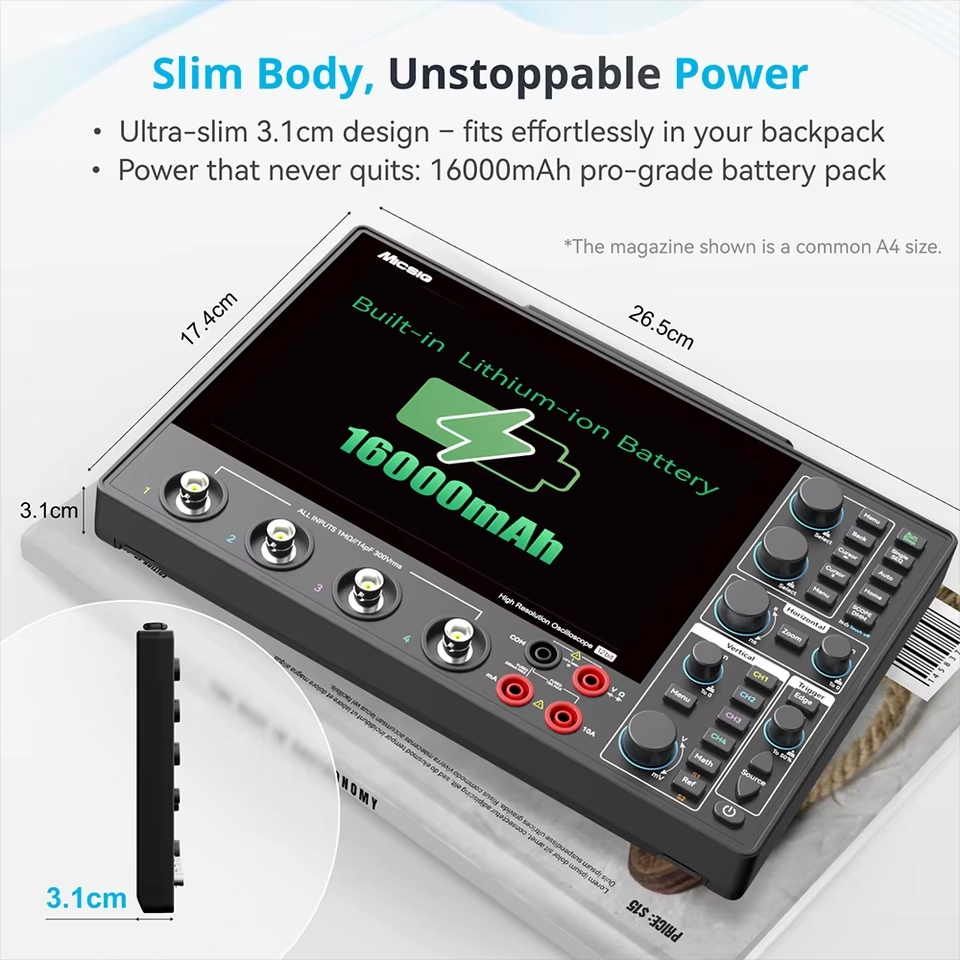

| Battery | 3.7 V、16000mAh Lithium-ion battery | |||
| Charging | Standard DC 12V adapter, supports Type-C 5V charging | |||

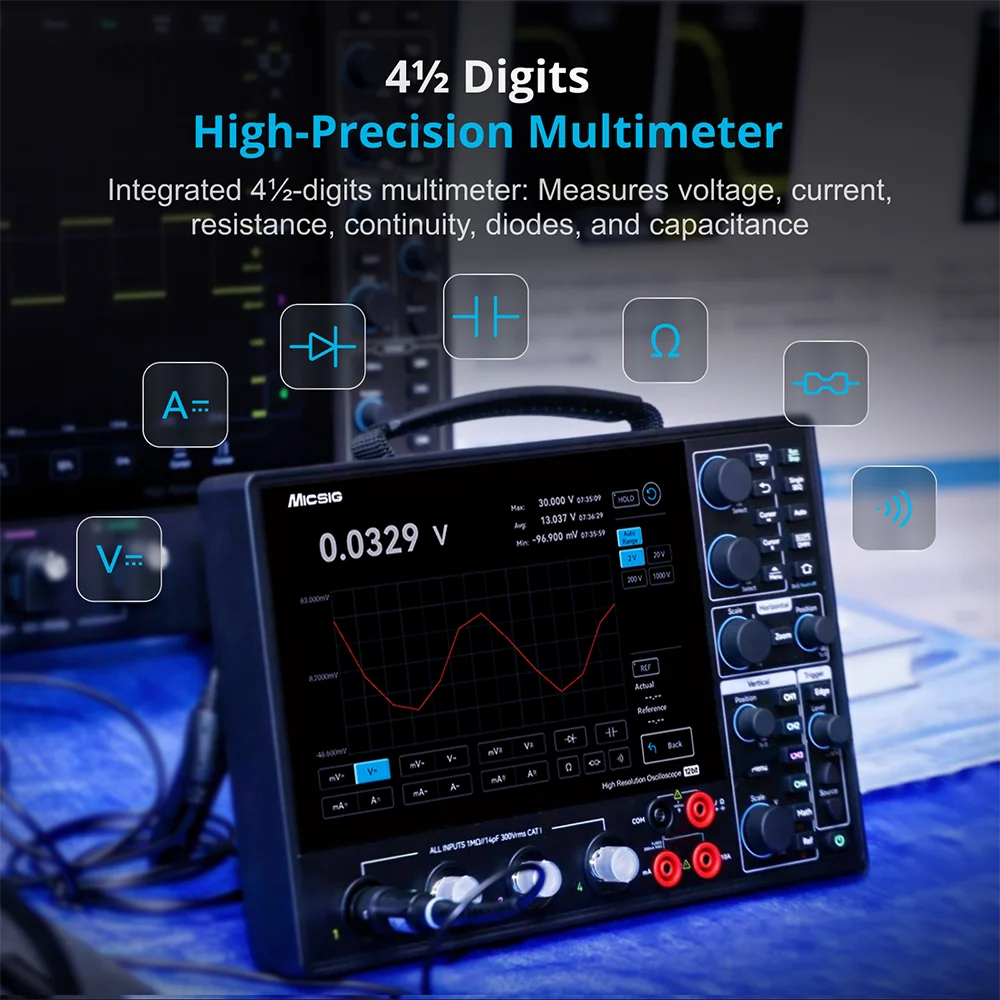

| Multifunction Meter Accuracy | 4⅚ Digits | / | ||
| Dimension | 265*174*31mm（Width x Height x Thickness） | |||
Detailed Images
